Dry Cargo Body Truck Mounted (18ton)
- Overall length 7000mm
- Overall width 2560mm(external)
- Internal platform/loading area 6900 mm X2460 mm
- V.W 20.5
- Pay load 18 ton
- Tare weight 5 ton
Our Company Produces The following Traillers with their Specification.
3-Axle Dry Cargo Body Draw Bar Trailer (22ton)
Dimensions
- Overall length 7500mm (without draw bar)
- Overall width 2560mm (External)
- Overall height 2600mm
Weight:
- technical weight per axle 12 ton
- V.W 30 ton
- Pay load 22 ton
- Tare weight 8 ton
3-Axle High Bed Semi-Trailer (40ton)
Dimensions:
- Overall length 12500mm
- Overall width 2560mm
- Fifth wheel coupling height 1205 – 1250mm
- Wheel base(Axle center) 1360mm
- Front board height 1400mm(fixed, 2mm thick corrugated sheet
- Side and rear board height 800mm(hinged and detachable, 2mm thick corrugated sheet)
- Ground clearance min 400mm (unloaded)
- Accessible roller if the tractor have winch
Weight:
- technical weight per axle 12 ton
- V.W 48 ton
- Pay load 40 ton
4-Axle high Bed Semi-Trailer (60ton)
- Gross trailer weight: 61 ton
- Payload: 50 ton
- Tare weight: 11 ton
Dimension
- Body length: 13500mm
- Body width: 2600mm (including pockets)
- Side and rear board height : 800mm
- Front board height: 1600mm
- Ground clearance: 400mm (fully loaded)
- Overall length(Approximately : 18,000mm (Tractor & Trailer)
3-Axle Low Bed semi-Trailer (45ton)
Dimensions:
- Overall length 12650mm
- Platform length 8250mm
- Platform width 3000mm
- Extended width 3500mm
- Platform height 1330mm
Goose Neck:
- Length 3250mm
- Width 1600mm
Weight:
- V.W 58 ton
- Pay load 45 ton
- Tare weight 13 ton
- Axle group pay load 42ton

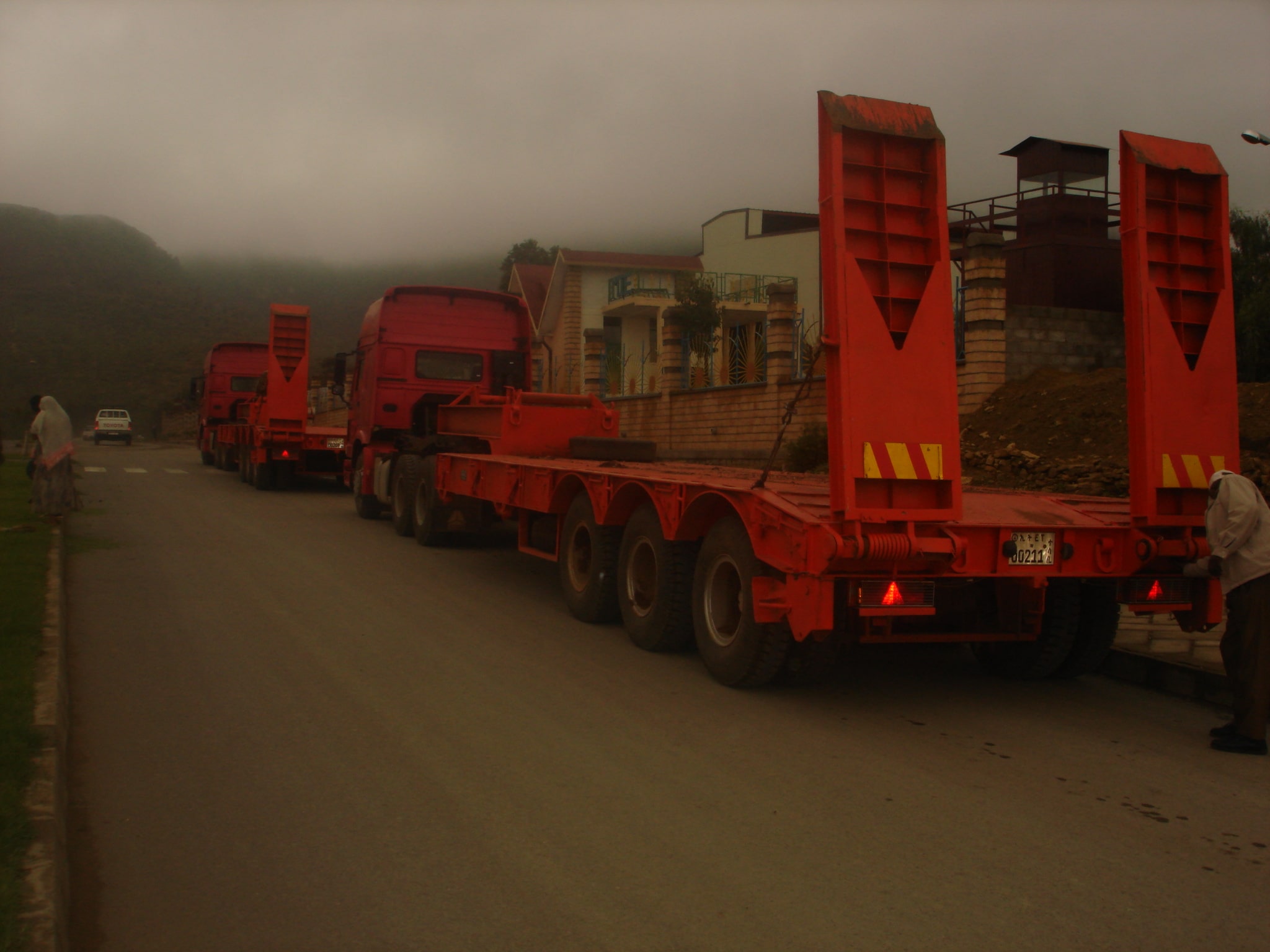

3-Axle low Bed Semi-Trailer (60ton)
Dimensions:
- Overall length 12650mm
- Platform length 8250mm
- Platform width 3000mm
- Extended width 3500mm
- Platform height 1330mm
Goose Neck:
- Length 3250mm
- Width 1600mm
Weight:
- V.W 75ton
- Pay load 60 ton
- Tare weight 25ton
- Axle group pay load 48ton

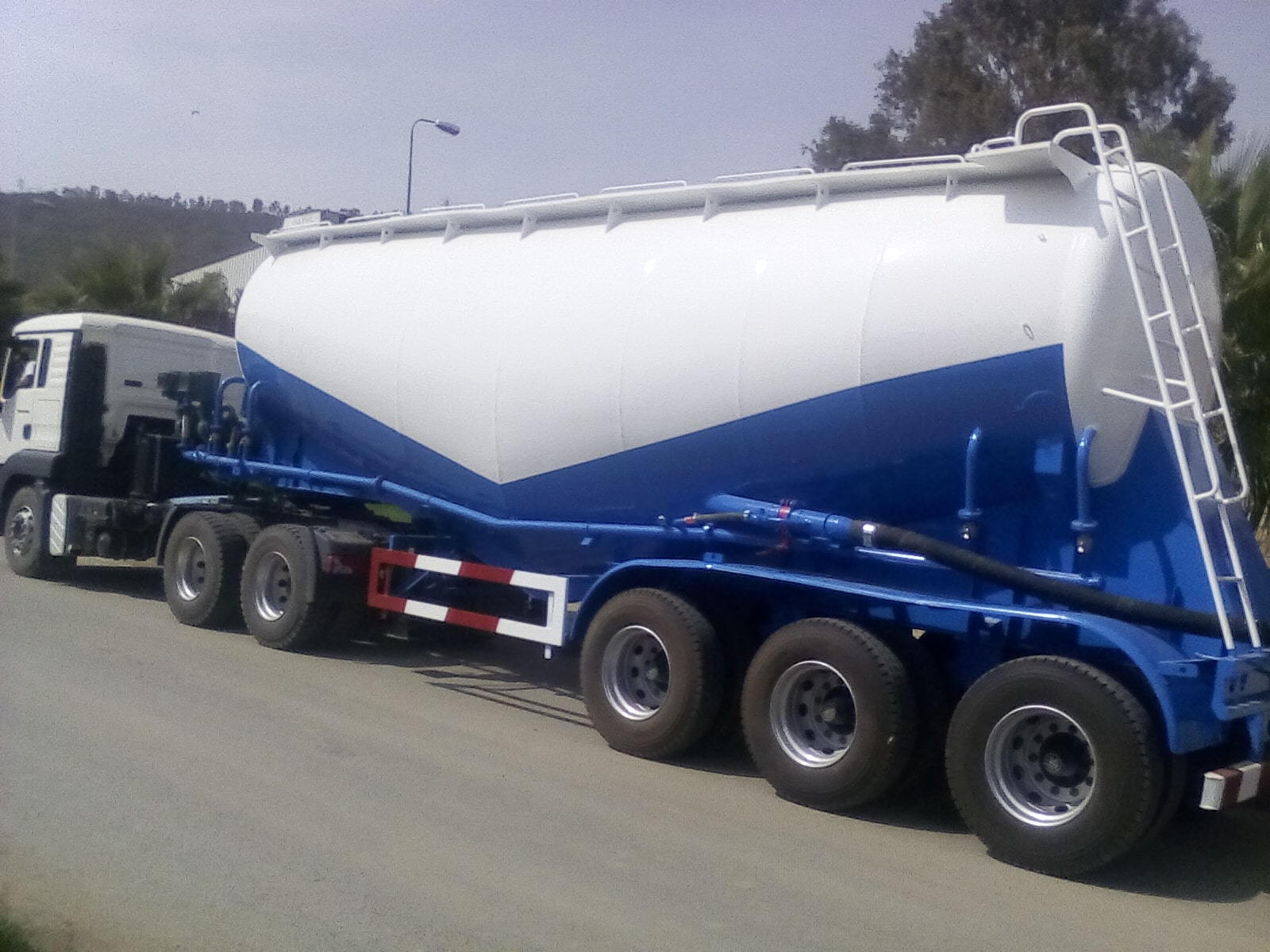

Bulk cement tank semi-trailer (40ton)
- Bulk tank shape : Mono block cylinder and V-shaped
- Bulk tank overall length: 12000mm
- Bulk tank overall width: 2500mm
- Bulk tank body thickness: 5mm
- Bulk tank end plate thickness: 6mm
- Fifth wheel coupling height: 1205 – 1250mm
- Wheel base(Axle center): 1360mm
- Overall height : 4000mm
Weight:
- technical weight per axle 12 ton
- V.W 50 ton
- Pay load 40 ton

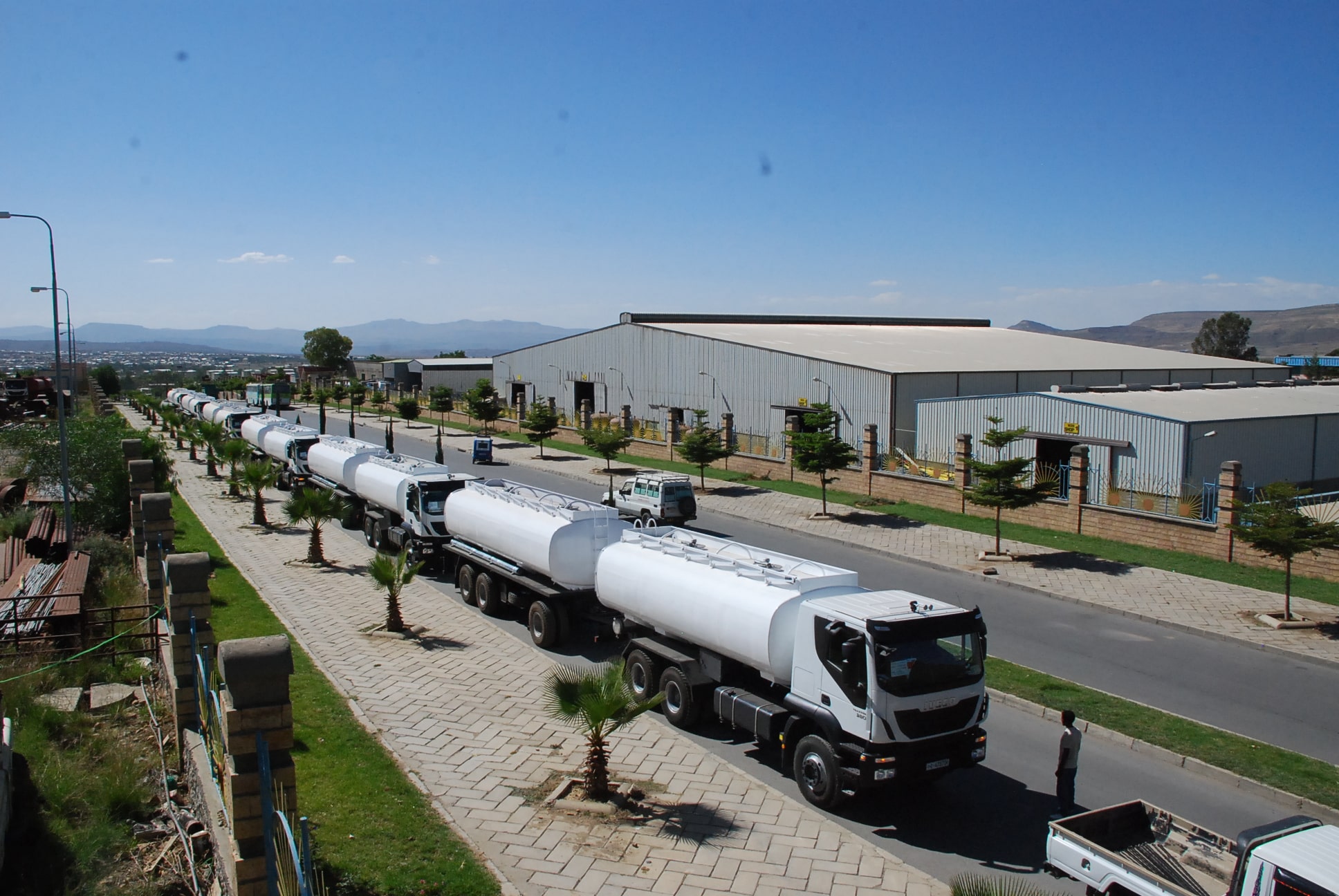

21m^3 Truck Mounted Fuel Tanker
Dimensions (inside):
- Overall length b/n end plate: 6600mm
- Major axis: 2458mm
- Minor axis: 1608mm
- No of compartments: Two (equal size)
Weights:
- Capacity: 21000lit
21m^3 Truck Mounted Fuel Tanker
Dimensions (inside):
- Overall length b/n end plate: 6600mm
- Major axis: 2458mm
- Minor axis: 1608mm
- No of compartments: Two (equal size)
Weights:
- Capacity: 21000lit

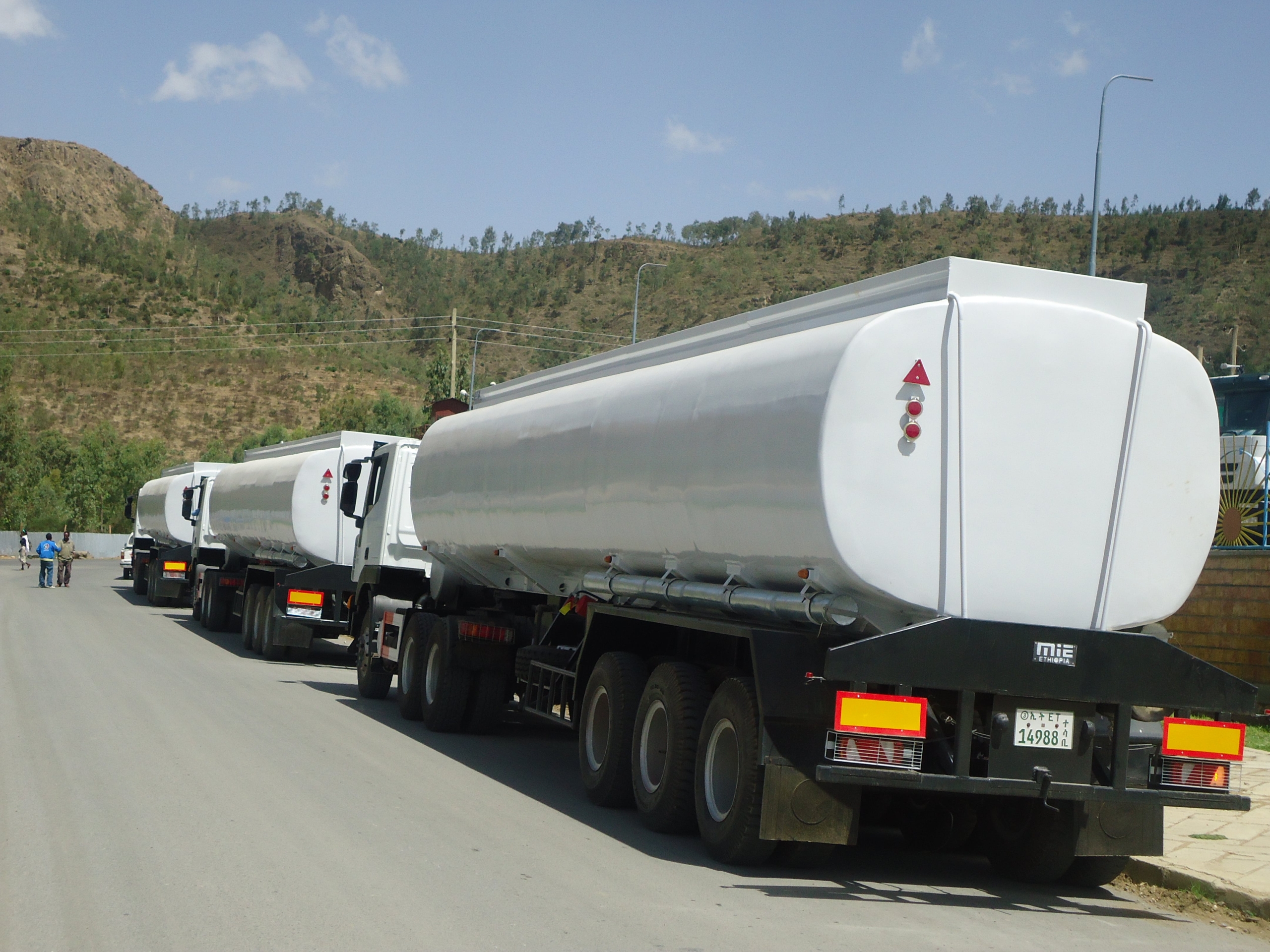

46^3 3-axle Semi-Trailer Fuel Tanker
Dimensions (inside):
- Overall length b/n end plate: 12672mm
- Major axis: 2458mm
- Minor axis: 1808mm
- No of compartments: Four (equal size)
Weights:
- Gross Axle Capacity 3X12tons
- Capacity: 46000lit
